TA-40

Application Scenario：

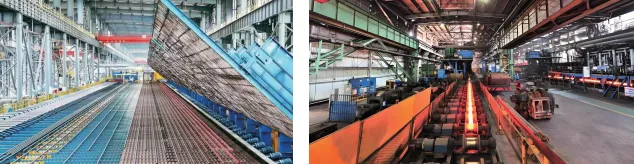

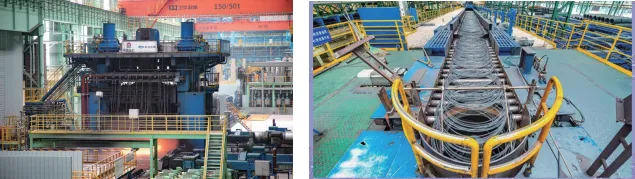

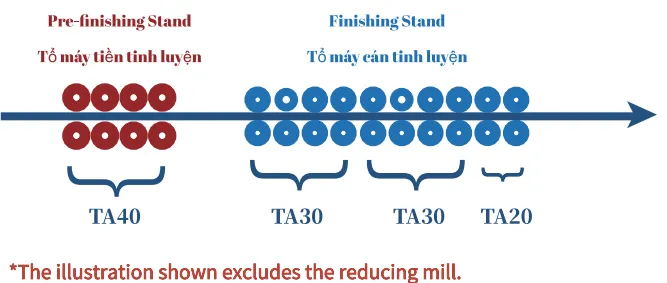

Scenario 1: Wire Rod Mill Production Line

TA series can cover the wire rod finishing mill block, Throughputincreased by 1 to 3 times.

Wire rod rolling range:5.5~20mm

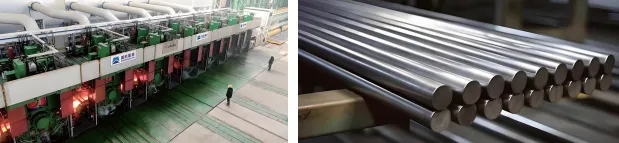

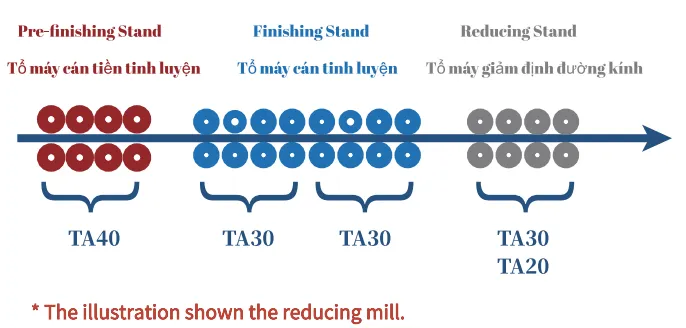

Scenario 2:Bar Mill Production Line

TA40: Suitable for rolling 12~16mm rebar or round bar

TA50: Suitable for rolling 18~25mm rebar or round bar

Scenario 3: Specialty Steel Production Line

High-speed bar 400E,500E,600E

Steel Cord

Spring Steel

Bearing Steel



Advantages

Advantage 1:Adaptable to hot-rolling and low-temperature steel rollingprocesses.

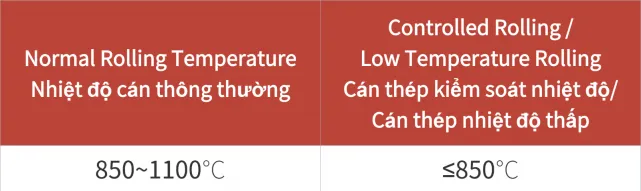

Hot rolling process temperature 850~1100℃, Low-temperature steelrolling process temperature 780~850℃.

Such as: Rolling special steel grades such as 400E,500E,600E high-strength rebar.

Physical and mechanical properties can be significantly improved,resulting in higher quality.


Advantage 2:New National Standard.Multi-slit thermo-mechanicalcontrol process(TMCP) production lines for high-strength rebar.

It can be simultaneously applied to all finishing mill stands of multiplebar rolling lines.

Compared to ordinary rolls,the increase in throughput can greatlyenhance the production efficiency of the rolling mill line and reducedowntime.

Adapts to rolling temperatures of 750~850℃.


Advantage 3:Rolls multiple types of steel grades,wide rolling application.The range of rolled steel grades includes:1.Plain Carbon Steel2.High-strength Rebar Bars3.Tire Cord Steel4.Spring Steel5.Bearing Steel6.Alloy Steel7.Cold Heading Steel
