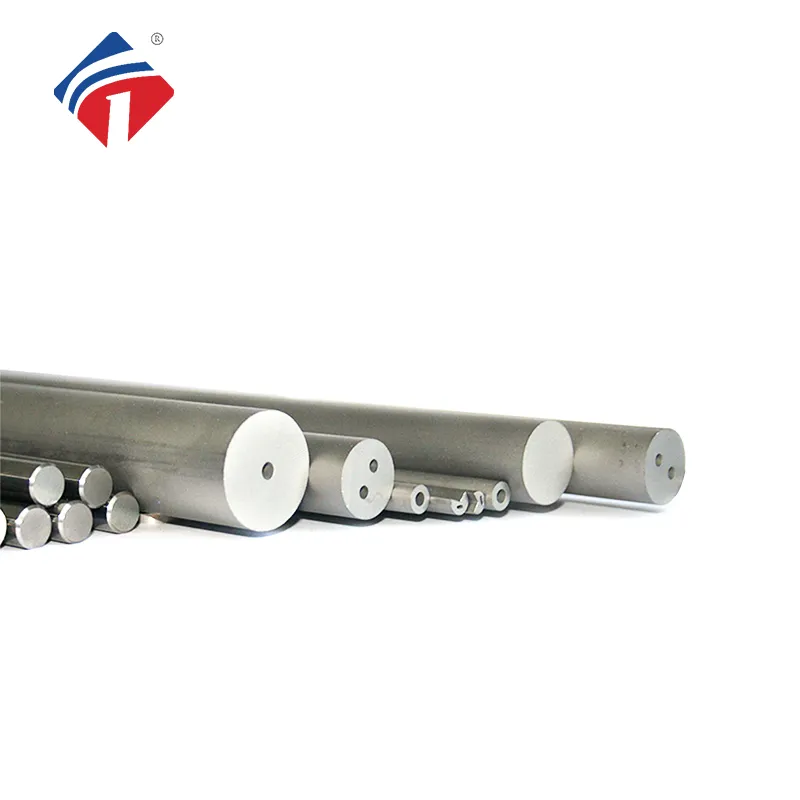

Description
TYGK Encoding system
|
①Production Category |
②TYGK Grade |
③Type Classfication |
④Shape Code |
⑤Diameter |
⑥Lengh |
|
H0-Unground |
25U-TY25UF |
BR-Rods |
1-No Chamfer |
|
|
|
H1-Half-ground |
25S-TY25S |
BQ-Ball-Nose Endmill Blank |
2-Chamfer |
|
|
|
H2-Ground H6 |
20-TY20 |
Bt Step-Rods |
3-Double Chamfer |
|
|
|
H7-Ground H7 |
05A-TY05A |
|
|
|
|
|
|
10U-TY10UF |
|
|
|
|
Grade Introduction
|
Grade |
ISO Application Grade |
GraSiz(µm) |
Cobal Content （％） |
Hardnes (HRA) |
Density (g/cm³)
|
TRS (N/m²) |
Microstructure 10000x |
|
TY05A |
K15 |
1.0 |
6.0 |
92.5 |
14.95 |
2450 |
|
|
TY10UF |
K05-K10 |
0.4 |
6.0 |
94.0 |
14.80 |
3800 |
|
|
TY20 |
K20-K40 |
0.6 |
10.0 |
91.8 |
14.45 |
3800 |
 |
|
TY25S |
K20-K40 |
0.5 |
11.0 |
92.4 |
14.25 |
4000 |
 |
|
TY25UF |
K20-K40 |
0.4 |
12.0 |
92.5 |
14.10 |
4200 |
 |
|
|
TY10UF |
TY25S |
TY25UF |
TY20 |
TY05A |
|
|
Type ofCutting Tools |
Recommended Grade(Suitable:△) |
|||||
|
Endmill |
|
△ |
△ |
△ |
△ |
|
|
Drills |
△ |
△ |
△ |
△ |
△ |
|
|
Reamer |
|
△ |
△ |
△ |
|
|
|
Work Material |
Recommended Grade(◎:Best;Ο:Suitable) |
|||||
|
|
Non Alloy Steel |
Ο |
◎ |
◎ |
◎ |
|
|
P |
Low Alloy Steel |
|
Ο |
Ο |
|
◎ |
|
|
High Alloy Steel |
|
◎ |
◎ |
◎ |
|
|
M |
Stainless Steel |
Ο |
|
◎ |
|
|
|
|
Grey Cast Iron |
Ο |
◎ |
Ο |
◎ |
◎ |
|
K |
Ductile Cast Iron |
|
|
Ο |
◎ |
|
|
|
Spheroidal Graphite Iron |
◎ |
◎ |
Ο |
Ο |
Ο |
|
N |
Aluminum Alloy |
|
Ο |
Ο |
◎ |
Ο |
|
CopperAlloy |
|
◎ |
◎ |
◎ |
Ο |
|
|
S |
Nickel Alloy |
|
|
◎ |
◎ |
◎ |
|
Titanium Alloy |
|
◎ |
◎ |
◎ |
◎ |
|
|
H |
Hardened Steel |
|
|
◎ |
Ο |
◎ |
|
Others |
Wood |
|
Ο |
Ο |
Ο |
Ο |
|
Fiber Glass Reinforced Plastics |
|
◎ |
◎ |
|
◎ |
|
|
Composite |
|
◎ |
◎ |
Ο |
Ο |
|
TY25S:Endmil、reamers and gravers are recommended.Excllent performance for high speed cuting. Suitable for cutting hardened steel,aluminum alloy and Titanium alloy.
TY20:Drill and endminlls are recommended.Suitable for cuting die steel、grey cast iron、austenitic stainles steel and heat resistant alloy.
TY05A:Drill、endmil and burr are recommended.Suitable for cuting non-ferous metal,aluminum,copper and graphite(coating in needed)
This grade recommendation is for your reference only, due to the shape of cutting tools and coating both have great influence on cutting tool's performance. Please go to specialty of grade for further information to assist your grade choice.

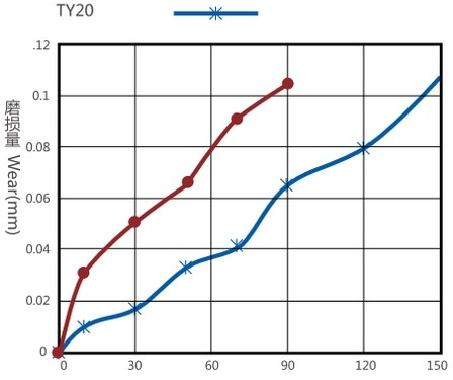

TY20 Case
Milling Die Steel(40HRC)
|
|
Work Piece Material |
Tool Type |
Grade |
||
|
Working Conditions |
Die Steel Skd61(40hrc) |
Endmill |
TY20 |
||
|
Mill Dia. (mm) |
Flute Length(mm) |
Number of Flutes(n) |
Coating |
Cooling |
|
|
8 |
20 |
4 |
AlCrN |
Water Soluble |
|
Cutting Conditions:
VC=95m/min
fz=840mm/min ae=0.8mm
ap=8mm
LIFE +60%
Cutting Length(m)
Competitor O company
TY20
TY25S Case
Milling Die Steel(55HRC)
|
|
Work Piece Material |
Tool Type |
Grade |
||
|
Working Conditions |
Die Steel SKD61(55HRC) |
Endmill |
TY25S |
||
|
Mill Dia. (mm) |
Flute Length(mm) |
Number of Flutes(n) |
Coating |
Cooling |
|
|
6 |
- |
2 |
TiAIN |
Mist Oil |
|
Cutting Conditions:
VC=254m/min
fz=4200mm/min ae=0.2mm
ap=2mm
LIFE +60%

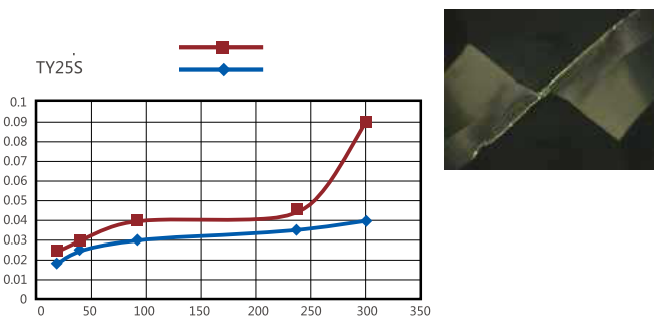

Cutting Length(m) Competitor M company
TY25S

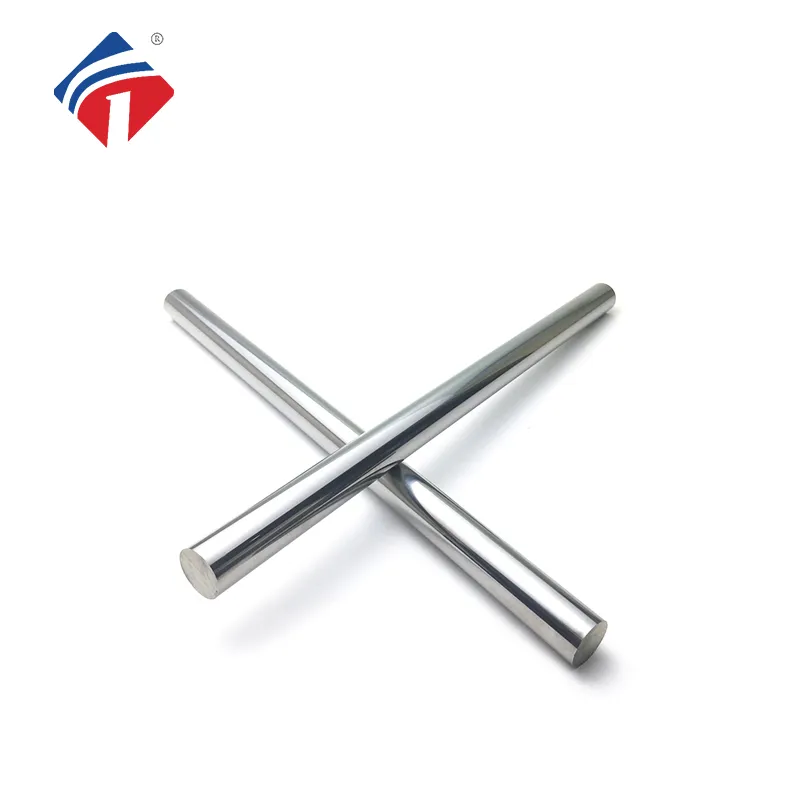

Ground Rods with Chamfer
Ground Rods with Chamfer -Inch
|
TYGKProduction Category H2/H7 ISO h6/h5 |
||||
|
Specification |
Dimension |
Tol.of OD |
||
|
OD |
L |
h6 |
h5 |
|
|
BR2031038 |
1/8 |
1/2 |
√ |
√ |
|
BR2031050 |
1/8 |
2 |
√ |
√ |
|
BR2031063 |
1/8 |
2-1/2 |
√ |
√ |
|
BR2031076 |
1/8 |
3 |
√ |
√ |
|
BR2047050 |
3/16 |
2 |
√ |
√ |
|
BR2047076 |
3/16 |
3 |
√ |
√ |
|
BR2063050 |
1/4 |
2 |
√ |
√ |
|
BR2063063 |
1/4 |
2-1/2 |
√ |
√ |
|
BR2063076 |
1/4 |
3 |
√ |
√ |
|
BR2063101 |
1/4 |
4 |
√ |
√ |
|
BR2079063 |
5/16 |
2-1/2 |
√ |
√ |
|
BR2050100 |
5.0 |
100 |
√ |
√ |
|
BR2050150 |
5.0 |
150 |
√ |
√ |
|
BR2060050 |
6.0 |
50 |
√ |
√ |
|
BR2060060 |
6.0 |
60 |
√ |
√ |
|
BR2060075 |
6.0 |
75 |
√ |
√ |
|
BR2060100 |
6.0 |
100 |
√ |
√ |
|
BR2060150 |
6.0 |
150 |
√ |
√ |
|
BR2070055 |
7.0 |
55 |
√ |
√ |
|
BR2070060 |
7.0 |
60 |
√ |
√ |
|
BR2080060 |
8.0 |
60 |
√ |
√ |
|
BR2080075 |
8.0 |
75 |
√ |
√ |
|
BR2080080 |
8.0 |
80 |
√ |
√ |
|
BR2080090 |
8.0 |
90 |
√ |
√ |
|
BR2080100 |
8.0 |
100 |
√ |
√ |
|
BR2080150 |
8.0 |
150 |
√ |
√ |
|
BR2100070 |
10.0 |
70 |
√ |
√ |
|
BR2100075 |
10.0 |
75 |
√ |
√ |
|
BR2100090 |
10.0 |
90 |
√ |
√ |
|
BR2100100 |
10.0 |
100 |
√ |
√ |
|
BR2100125 |
10.0 |
125 |
√ |
√ |
|
BR2120110 |
11.0 |
110 |
√ |
√ |
|
BR2120075 |
12.0 |
75 |
√ |
√ |
|
BR2120090 |
12.0 |
90 |
√ |
√ |
|
BR2120100 |
12.0 |
100 |
√ |
√ |
|
BR2120120 |
12.0 |
120 |
√ |
√ |
|
BR2140075 |
14.0 |
75 |
√ |
√ |
|
BR2140110 |
14.0 |
110 |
√ |
√ |
|
BR2140125 |
14.0 |
125 |
√ |
√ |
|
BR2160100 |
16.0 |
100 |
√ |
√ |
|
BR2160125 |
16.0 |
125 |
√ |
√ |
|
BR2180100 |
18.0 |
100 |
√ |
√ |
|
BR2180150 |
18.0 |
150 |
√ |
√ |
|
BR2200100 |
20.0 |
100 |
√ |
√ |
|
BR2200120 |
20.0 |
120 |
√ |
√ |
|
BR2200150 |
20.0 |
150 |
√ |
√ |
|
BR2250100 |
25.0 |
100 |
√ |
√ |
|
BR2250150 |
25.0 |
150 |
√ |
√ |
|
|
|
|
|
|
|
|
Diameter D,inch |
Chamfer C,inch |
||
|
(Range) |
(Tol.) |
(Range) |
(Tol.) |
|
|
1/8≤0Ds1 |
h5,h6 |
1/8s0D<7/16 |
+.015±.004 |
|
|
|
|
7/16sODs1 |
+.031±.008 |
|
|
Length L,inch |
Angle,Degrees |
|||
|
(Range) |
(Tol.) |
(Range) |
(Tol.) |
|
|
1/2≤Ls3/4 |
+1/16,-0 |
1/8sOD≤1 |
45°±3° |
|
(1)BR2 Thecode for series with chamfer is BR2
(2)BR1 The code forseries without chamfer is BR1
(3)BR3 The code for series withtwo chamfers is BR3
unit(inch)
Ordering Example:
(The type is for orderingexample,whose bottom is orange.)
|
Ordering Table |
||||||
|
NO. |
Grade |
Ordering Type |
Production Category &Type |
Tol. |
Amounts |
Remark |
|
1 |
TY20 |
H2-BR2031038 |
TYGK |
5000 |
|
|
|
2 |
|
|
|
|
|
|
Note：It will be taken as TYGK standard,if no tolerance isoffered.
Unground Rods
Unground Rods -Inch
|
TYGK Production Category HO:Blanks |
||
|
Specification |
Dimension |
|
|
OD |
L |
|
|
BR1031333 |
1/8 |
13-1/8 |
|
BR1035333 |
9/64 |
13-1/8 |
|
BR1039333 |
5/32 |
13-1/8 |
|
BR1043333 |
11/64 |
13-1/8 |
|
BR1047333 |
3/16 |
13-1/8 |
|
BR1051333 |
13/64 |
13-1/8 |
|
BR1055333 |
7/32 |
13-1/8 |
|
BR1059333 |
15/64 |
13-1/8 |
|
BR1063333 |
1/4 |
13-1/8 |
|
BR1071307 |
9/32 |
12-1/8 |
|
BR1075307 |
19/64 |
12-1/8 |
|
BR1079307 |
5/16 |
12-1/8 |
|
BR1083307 |
21/64 |
12-1/8 |
|
BR1087307 |
11/32 |
12-1/8 |
|
BR1091307 |
23/64 |
12-1/8 |
|
BR1095307 |
3/8 |
12-1/8 |
|
BR1099307 |
25/64 |
12-1/8 |
|
BR1103307 |
13/32 |
12-1/8 |
|
BR1107307 |
27/64 |
12-1/8 |
|
BR1111307 |
7/16 |
12-1/8 |
|
BR1115307 |
29/64 |
12-1/8 |
|
BR1119307 |
15/32 |
12-1/8 |
|
BR1123307 |
31/64 |
12-1/8 |
|
BR1127307 |
1/2 |
12-1/8 |
|
BR1134307 |
17/32 |
12-1/8 |
|
BR1142307 |
9/16 |
12-1/8 |
|
BR1158307 |
5/8 |
12-1/8 |
|
BR1174307 |
11/16 |
12-1/8 |
|
BR1190307 |
3/4 |
12-1/8 |
|
BR1206307 |
13/16 |
12-1/8 |
|
BR1222307 |
7/8 |
12-1/8 |
|
BR1238307 |
15/16 |
12-1/8 |
|
BR1254307 |
1 |
12-1/8 |
|
BR1020330 |
2.0 |
330 |
|
BR1025330 |
2.5 |
330 |
|
BR1030330 |
3.0 |
330 |
|
BR1035330 |
3.5 |
330 |
|
BR1040330 |
4.0 |
330 |
|
BR1045330 |
4.5 |
330 |
|
BR1050330 |
5.0 |
330 |
|
BR1060330 |
6.0 |
330 |
|
BR1065330 |
6.5 |
330 |
|
BR1070330 |
7.0 |
330 |
|
BR1075330 |
7.5 |
330 |
|
BR1080330 |
8.0 |
330 |
|
BR1085330 |
8.5 |
330 |
|
BR1090330 |
9.0 |
330 |
|
BR1095330 |
9.5 |
330 |
|
BR1100330 |
10.0 |
330 |
|
BR1105330 |
10.5 |
330 |
|
BR1110330 |
11.0 |
330 |
|
BR1115330 |
11.5 |
330 |
|
BR1120330 |
12.0 |
330 |
|
BR1125330 |
12.5 |
330 |
|
BR1130330 |
13.0 |
330 |
|
BR1135330 |
13.5 |
330 |
|
BR1140330 |
14.0 |
330 |
|
BR1145330 |
14.5 |
330 |
|
BR1150330 |
15.0 |
330 |
|
BR1155330 |
15.5 |
330 |
|
BR1160330 |
16.0 |
330 |
|
BR1165330 |
16.5 |
330 |
|
BR1170330 |
17.0 |
330 |
|
BR1175330 |
17.5 |
330 |
|
BR1180330 |
18.0 |
330 |
|
BR1185330 |
18.5 |
330 |
|
BR1190330 |
19.0 |
330 |
|
BR1195330 |
19.5 |
330 |
|
BR1200330 |
20.0 |
330 |
|
BR1205330 |
20.5 |
330 |
|
BR1210330 |
21.0 |
330 |
|
BR1215330 |
21.5 |
330 |
|
BR1220330 |
22.0 |
330 |
|
BR1225330 |
22.5 |
330 |
|
BR1230330 |
23.0 |
330 |
|
BR1235330 |
23.5 |
330 |
|
BR1240330 |
24.0 |
330 |
|
BR1245330 |
24.5 |
330 |
|
BR1250330 |
25.0 |
330 |
|
BR1255330 |
25.5 |
330 |
|
BR1260330 |
26.0 |
330 |
|
BR1265330 |
26.5 |
330 |
|
BR1270330 |
27.0 |
330 |
|
BR1275330 |
27.5 |
330 |
|
BR1280330 |
28.0 |
330 |
|
BR1285330 |
28.5 |
330 |
|
BR1290330 |
29.0 |
330 |
|
BR1300330 |
30.0 |
330 |
|
BR1305330 |
30.5 |
330 |
|
BR1310330 |
31.0 |
330 |
|
BR1315330 |
31.5 |
330 |
|
BR1320330 |
32.0 |
330 |
|
BR1325330 |
32.5 |
330 |
|
BR1330330 |
33.0 |
330 |
|
BR1335330 |
33.5 |
330 |
|
BR1340330 |
34.0 |
330 |
|
BR1345330 |
34.5 |
330 |
|
BR1350330 |
35.0 |
330 |
|
BR1355330 |
35.5 |
330 |
|
BR1360330 |
36.0 |
330 |
|
BR1365330 |
36.5 |
330 |
|
BR1370330 |
37.0 |
330 |
|
BR1375330 |
37.5 |
330 |
|
BR1380330 |
38.0 |
330 |
|
BR1385330 |
38.5 |
330 |
|
BR1390330 |
39.0 |
330 |
|
BR1400330 |
40.0 |
330 |
|
BR1405330 |
40.5 |
330 |
|
BR1410330 |
41.0 |
330 |
|
BR1415330 |
41.5 |
330 |
|
BR1420330 |
42.0 |
330 |
|
Standard |
Diameter D,mm |
|
|
Range |
Tol. |
|
|
2≤0D<3 |
+0.15~+0.30 |
|
|
3≤OD≤6 |
+0.30~+0.50 |
|
|
6 |
+0.30~+0.60 |
|
|
12 |
+0.30~+0.70 |
|
|
16 |
+0.30~+0.80 |
|
|
Length L,mm |
||
|
Range |
Tol. |
|
|
330 |
+5,-0 |
|
Ground Rods
Inch
|
ISO h6/h5 TYGK Production Category H2/H7 |
||
|
Specification |
Dimension |
|
|
OD |
L |
|
|
BR1063307 |
1/4 |
12-1/2 |
|
BR1071307 |
9/32 |
12-1/2 |
|
BR1075307 |
19/64 |
12-1/2 |
|
BR1079307 |
5/16 |
12-1/2 |
|
BR1083307 |
21/64 |
12-1/2 |
|
BR1087307 |
11/32 |
12-1/2 |
|
BR1091307 |
23/64 |
12-1/2 |
|
BR1095307 |
3/8 |
12-1/2 |
|
BR1099307 |
25/64 |
12-1/2 |
|
BR1103307 |
13/32 |
12-1/2 |
|
BR1107307 |
27/64 |
12-1/2 |
|
BR1111307 |
7/16 |
12-1/2 |
|
BR1115307 |
29/64 |
12-1/2 |
|
BR1119307 |
15/32 |
12-1/2 |
|
BR1123307 |
31/64 |
12-1/2 |
|
BR1127307 |
1/2 |
12-1/2 |
|
BR1134307 |
17/32 |
12-1/2 |
|
BR1142307 |
9/16 |
12-1/2 |
|
BR1158307 |
5/8 |
12-1/2 |
|
BR1174307 |
11/16 |
12-1/2 |
|
BR1190307 |
3/4 |
12-1/2 |
|
BR1206307 |
13/16 |
12-1/2 |
|
BR1222307 |
7/8 |
12-1/2 |
|
BR1238307 |
15/16 |
12-1/2 |
|
BR1254307 |
1 |
12-1/2 |
|
BR1060330 |
6 |
330 |
|
BR1070330 |
7 |
330 |
|
BR1080330 |
8 |
330 |
|
BR1090330 |
9 |
330 |
|
BR1100330 |
10 |
330 |
|
BR1110330 |
11 |
330 |
|
BR1120330 |
12 |
330 |
|
BR1130330 |
13 |
330 |
|
BR1140330 |
14 |
330 |
|
BR1150330 |
15 |
330 |
|
BR1160330 |
16 |
330 |
|
BR1170330 |
17 |
330 |
|
BR1180330 |
18 |
330 |
|
BR1190330 |
19 |
330 |
|
BR1200330 |
20 |
330 |
|
BR1210330 |
21 |
330 |
|
BR1220330 |
22 |
330 |
|
BR1230330 |
23 |
330 |
|
BR1240330 |
24 |
330 |
|
BR1250330 |
25 |
330 |
|
BR1260330 |
26 |
330 |
|
BR1270330 |
27 |
330 |
|
BR1280330 |
28 |
330 |
|
BR1290330 |
29 |
330 |
|
BR1300330 |
30 |
330 |
|
BR1310330 |
31 |
330 |
|
BR1320330 |
32 |
330 |
|
BR1330330 |
33 |
330 |
|
BR1340330 |
34 |
330 |
|
BR1350330 |
35 |
330 |
|
BR1360330 |
36 |
330 |
|
BR1370330 |
37 |
330 |
|
BR1380330 |
38 |
330 |
|
BR1390330 |
39 |
330 |
|
BR1400330 |
40 |
330 |
|
BR1410330 |
41 |
330 |
|
BR1420330 |
42 |
330 |
|
Standard |
Diameter D,mm |
|
|
Range |
Tol. |
|
|
6 |
h6,h5 |
|
|
Length Lmm |
||
|
Range |
Tol. |
|
|
330 |
+5,-0 |
|
 |

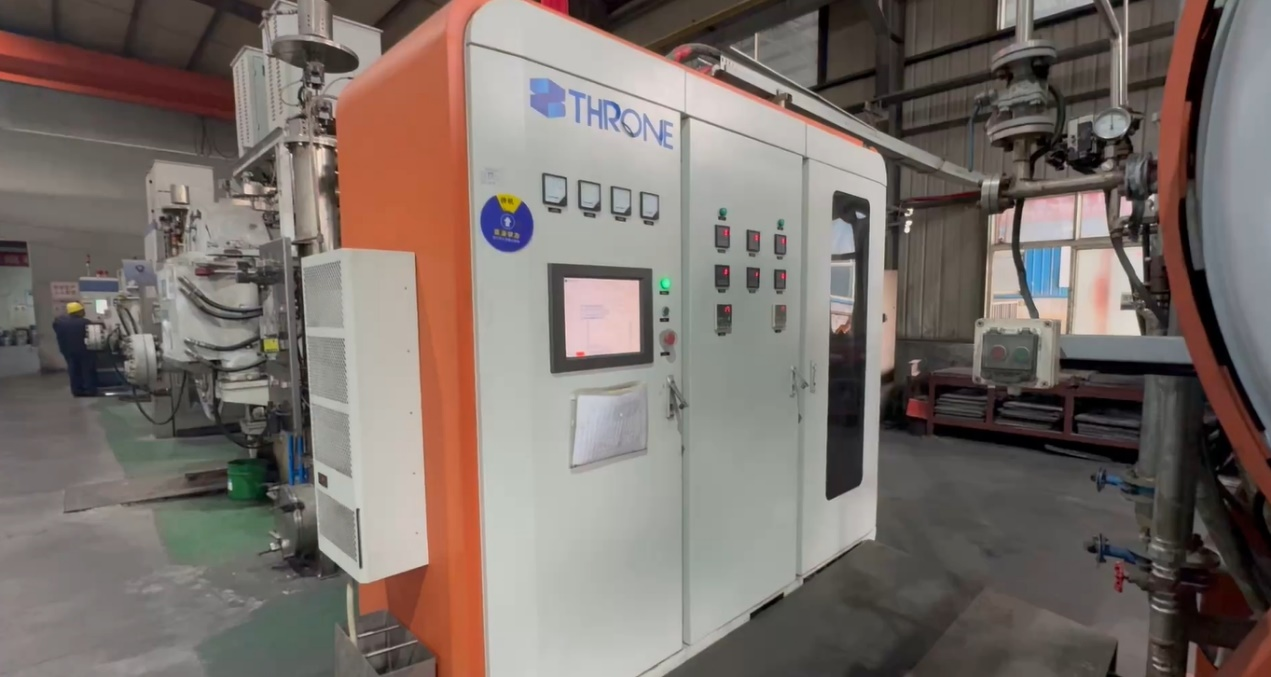

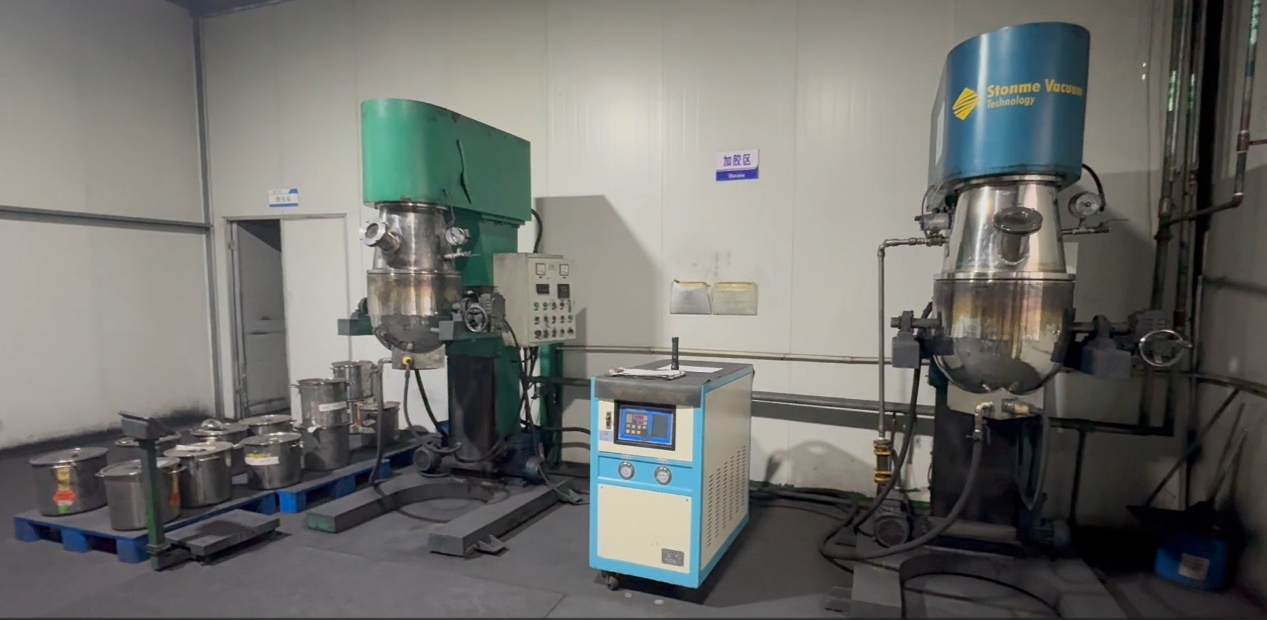

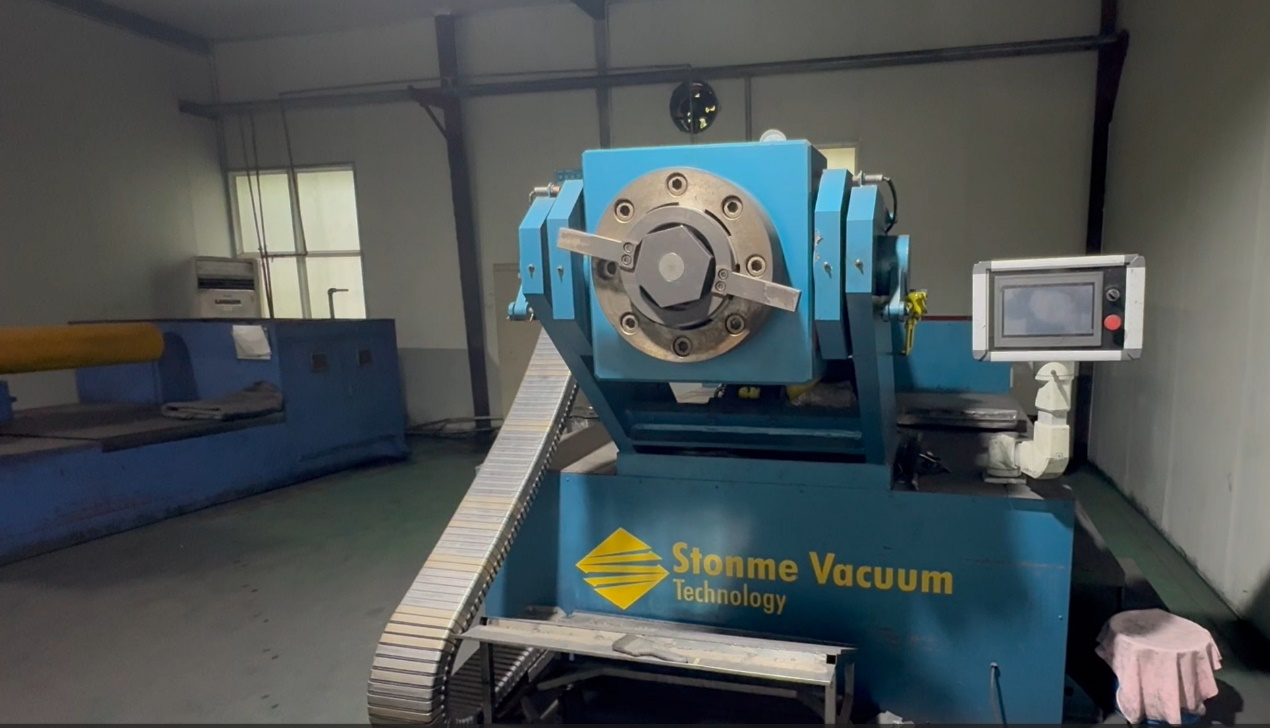

Type：C B T 3 0 5 Microcomputer controlled electronic flexural testing machine Accuracy： 1N GB/T3851-1983≈ISO3327-1982 ASTM B406-1996 |
 |
Type：R B 2 0 0 0 R Rockwell Hardness Tester USA Wilson GB/T3849-1983≈ISO3788/1-1982 ASTM B294-1992 |
 |
Type：LD J - 5800 Magnetic performance meter Imported magnetic saturation and coercivity test all-in-one machine |
 |
Electronic balance：XS105 ME TTLER TOLEDO Accuracy：0.01mg GB/T3850≈ISO3369 ASTM B294 |
 |
Metallographic microscope：Image r .A2m CarlZeiss GBT3479-1983≈ISO4505-1978 ASTM B276-2005 GBT3448-1983≈ISO4499-1978 ASTM B390-1992 |
Property testing instruments
INQUIRY
Related product categories
- china end mill cnc bits
- china 2mm cnc end mill
- china cheap cnc end mills
- china cnc router end mills
- china end mill set
- china high end desktop cnc mills
- china solid carbide rod suppliers
- china solid carbide rod supplier
- cemented carbide roller manufactuer
- cemented carbide roll
- milling cutter bits
- end mills for steel
