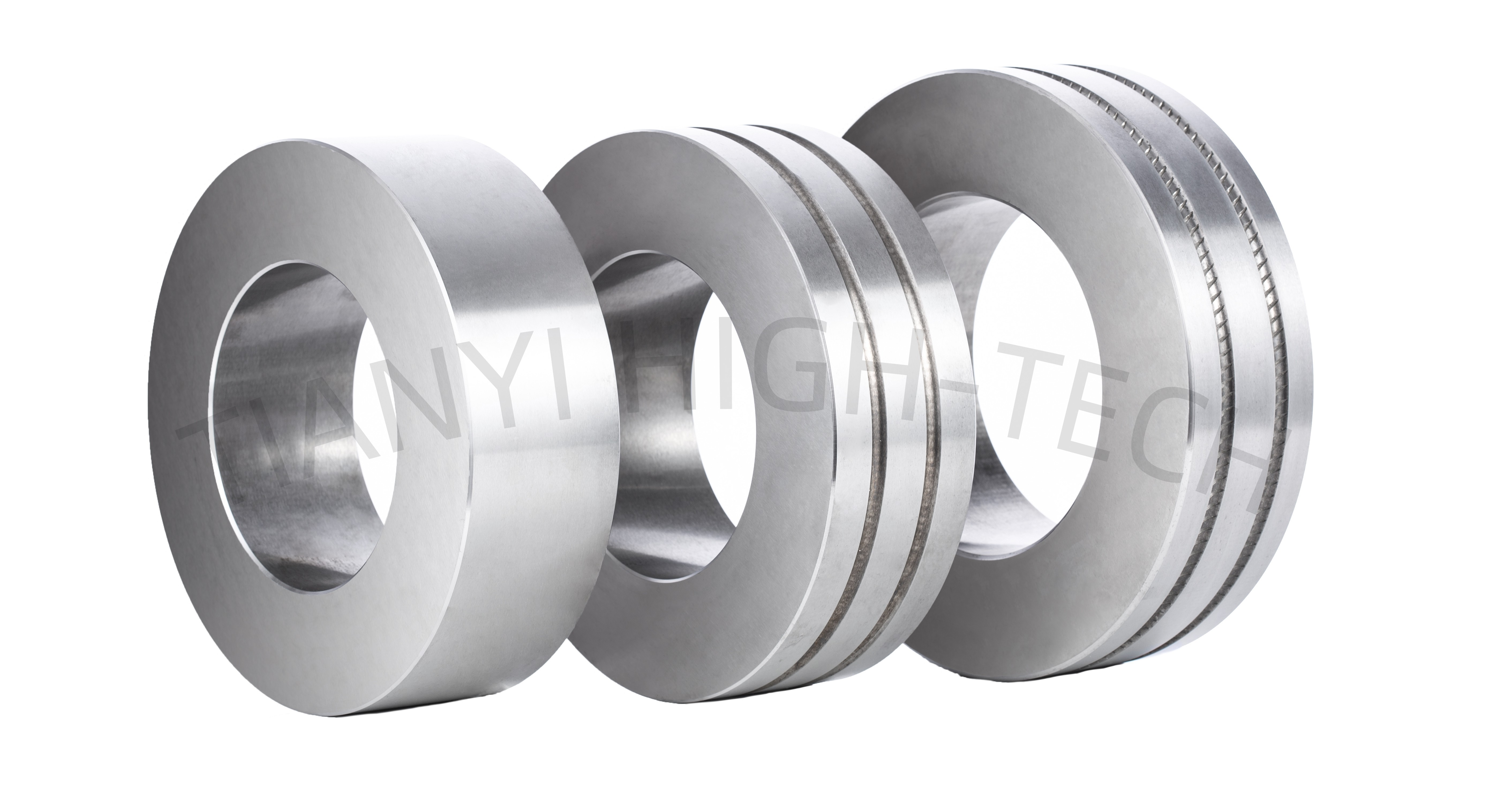

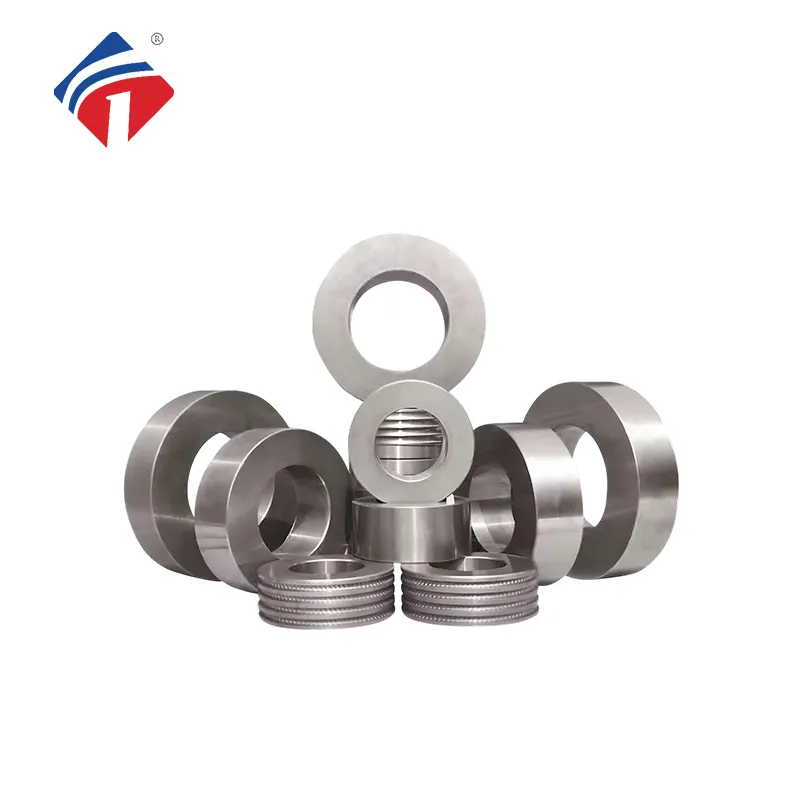

High Wear Resistance Tungsten Carbide Thread Roller B154 For Metal Steel Rolling

Product Information

Material： WC, Metallic binder (Cobalt, Nickel, etc.)
Roller Style: Grooving roller.

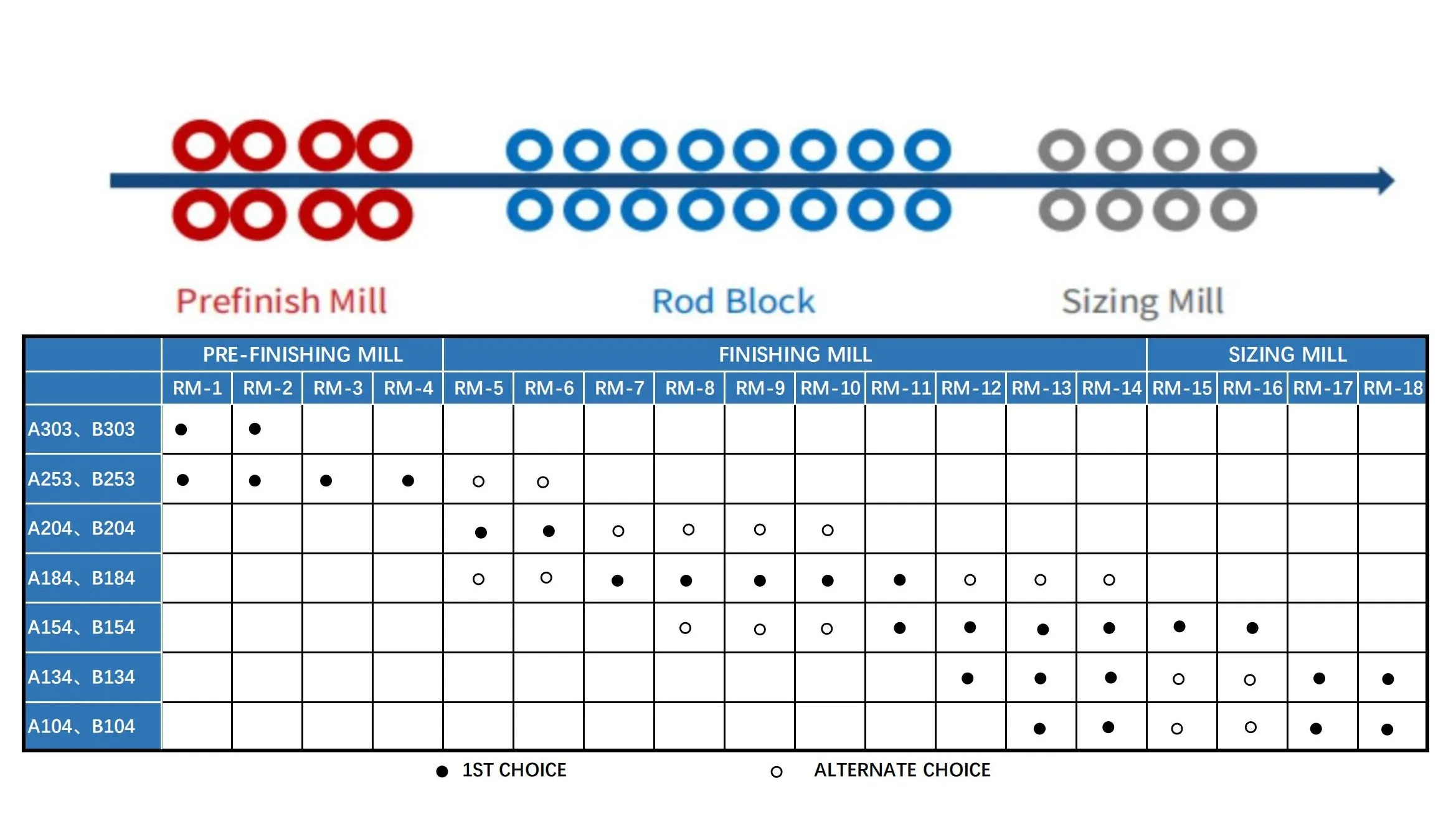

Rolling Mill: Pre-finishing Mill & Finishing Mill & Reducing Mill.
Types of Rolling: Hot Rolling(High-Temperature),Cold Rolling(Room temperature)
Surface: Polishing.
Advantage: exceptional hardness, high wear resistance, and durability
Certification: ISO Certificate.
Other Services: OEM/ODM.

INQUIRY Email

Description

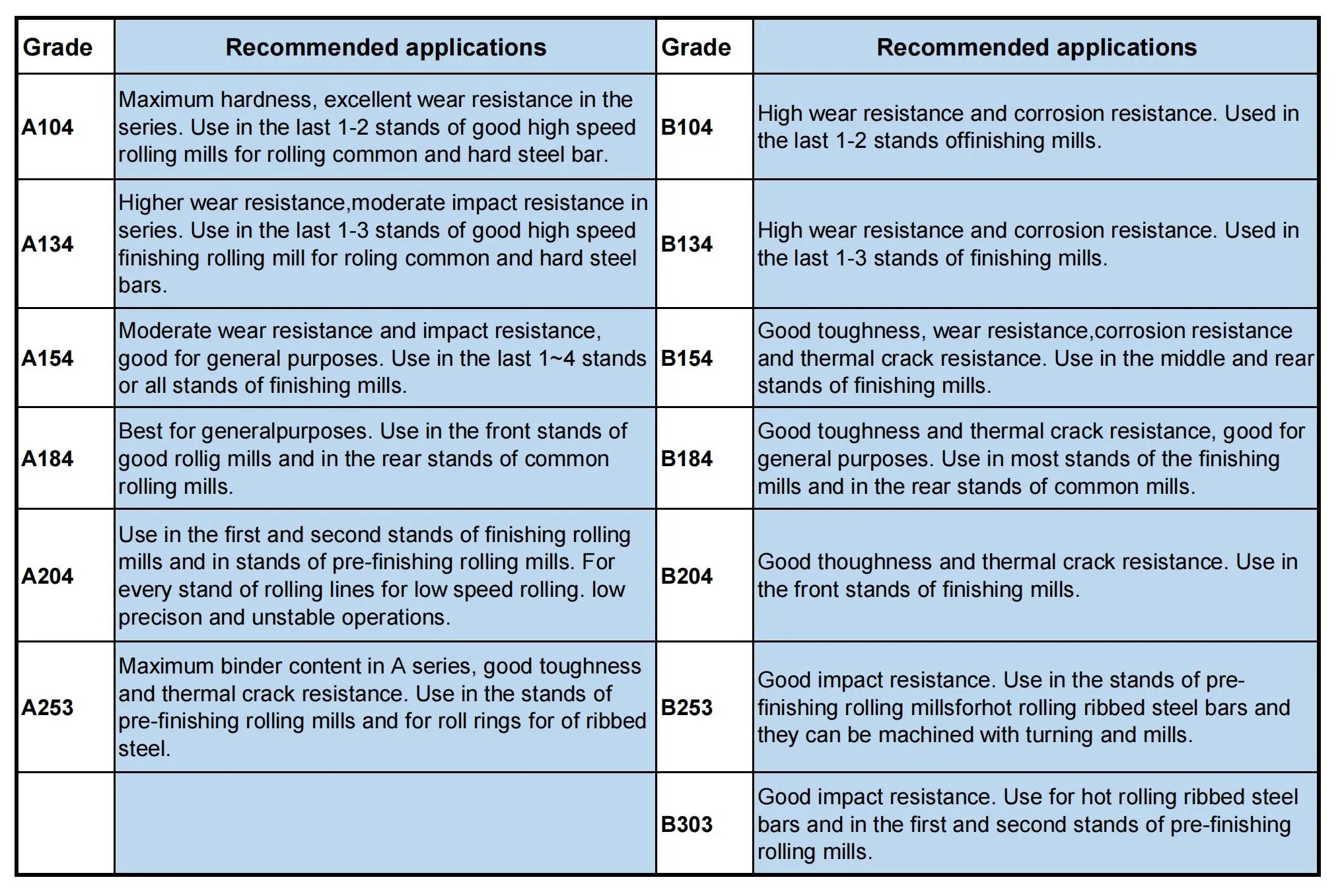

Technical Parameter

Cemented carbide roll rings (also known as Tungsten Carbide Roll Rings) offer excellent thermal conductivity and outperform first-generation cast-iron and high-speed-steel rolls in heat resistance, wear resistance, and strength, with minimal hardness reduction at high temperatures. Developed alongside high-speed wire rod mills, they are now extensively applied in the finishing stands for manufacturing high-speed wire, rebar, and deformed steel bars.

Roughness of carbide rolls
Inner hole roughness:	0.4μm
Periphery roughness:	0.4μm
End face roughness:	0.4μm

The specification of the cemented carbide roller
Range of O.D.	Range of I.D.	Range of Height
145-330	87-260	45-130

The allowable deviation of carbide roll rings
Radial runout of groove:	≤0.013mm	Radial runout of excircle:	≤0.013mm
End face runout:	≤0.02mm	End face planeness:	≤0.01mm
End face parallelism: ≤0.01mm	≤0.01mm	Inner hole cylindericity:	≤0.01m

The tolerances allowable for the outer diameter, inner diameter, and height of roll rings.
Precision Index	1	2	3	4	Customization Service We can customize your size & materials according to the drawings provided by customers.
O.D. (±)	0.02	0.05	0.1	0.15
I.D. (±)	IT 5	IT6	IT7	IT8
Height(-)	0.03	0.1	0.2	0.5

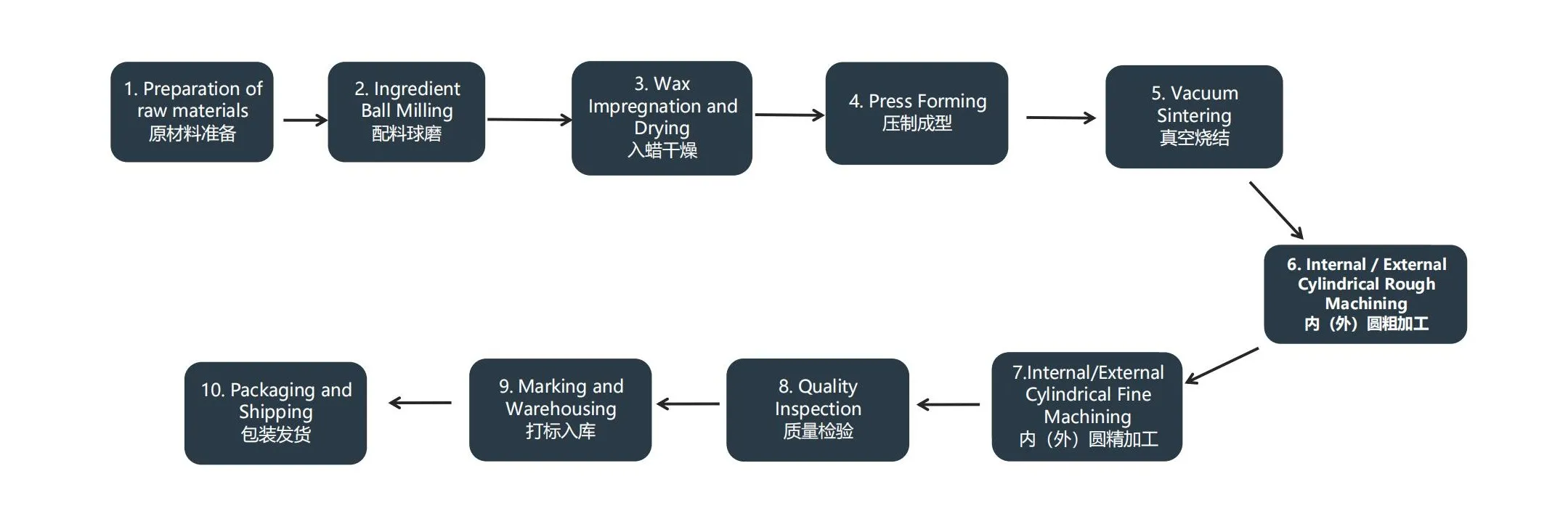

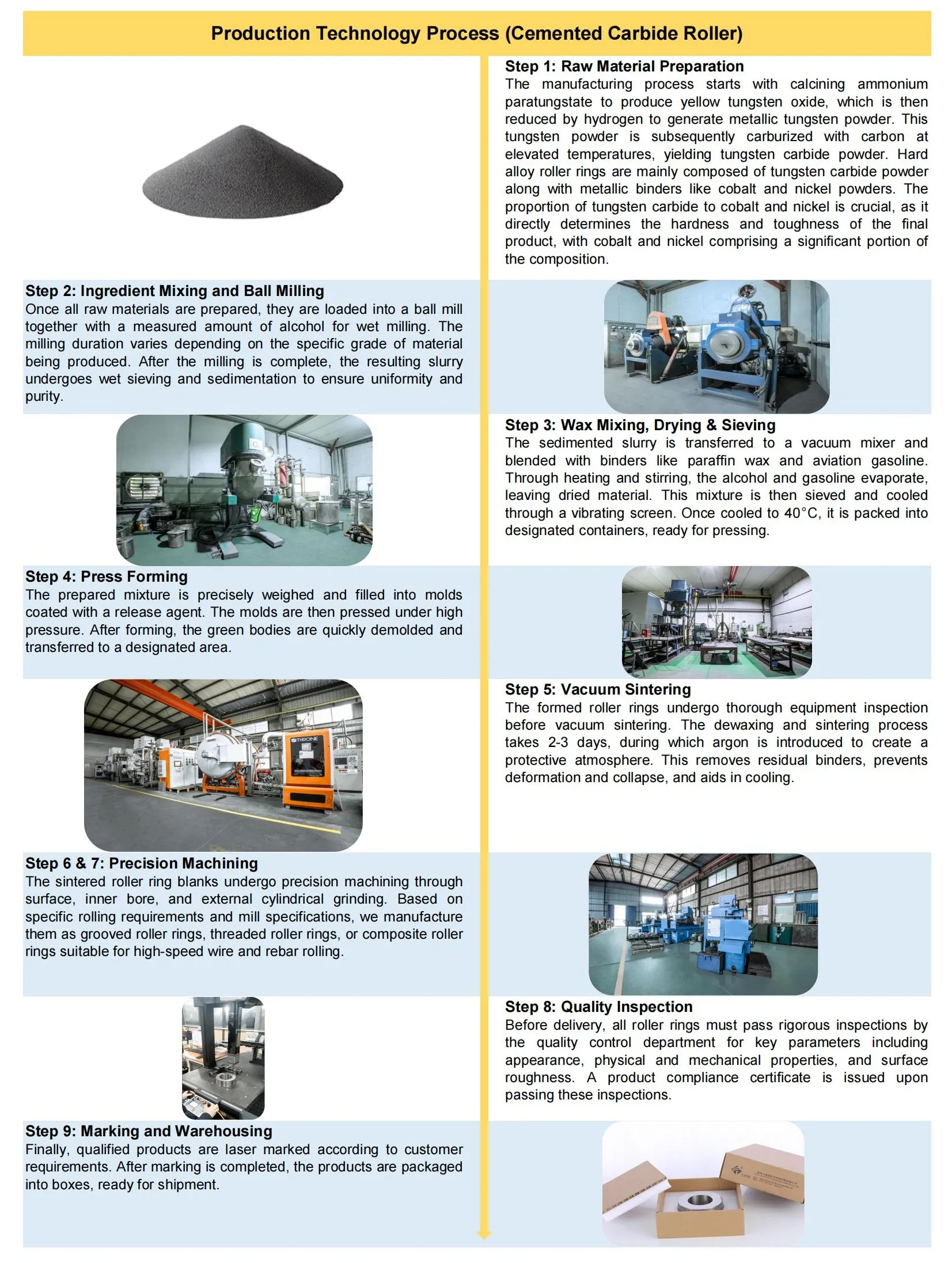

Production Technology Process

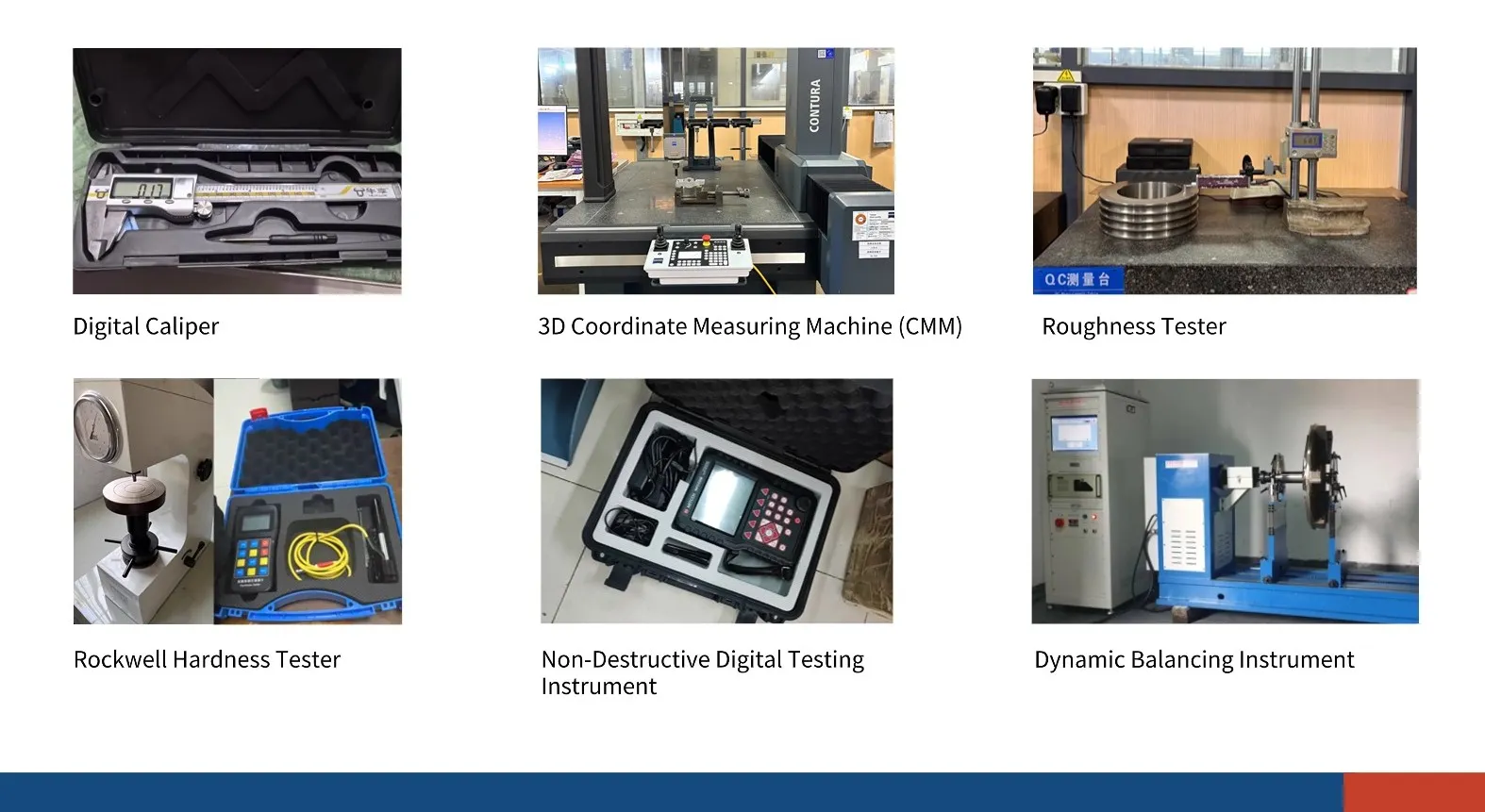

Quality Inspection Equipment
